Older Sewing Machine--Help
#1
Super Member
Thread Starter
Join Date: Dec 2010
Location: Lemoore, Ca
Posts: 1,467
Does anyone have this machine. I've had it for several years but have not been able to get info. on it. It is called Macy's Own, HERALD. That is the only thing I know. If anybody has info. on this machine, let me know. Yr.model, etc.
All orginal
[ATTACH=CONFIG]217688[/ATTACH]

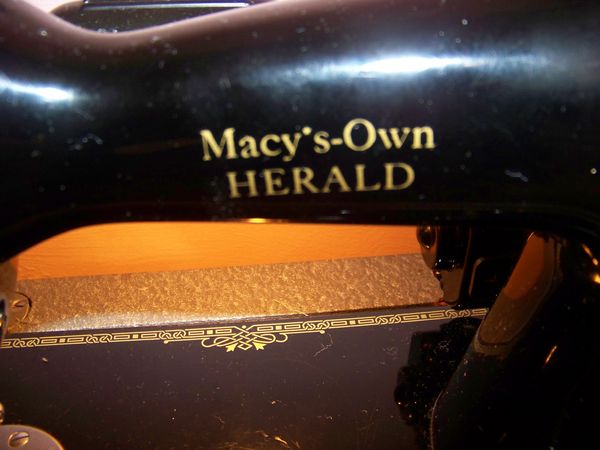

Only thing I know-name and that it was made in Japan.
[ATTACH=CONFIG]217689[/ATTACH]
#3
Senior Member
Join Date: Oct 2009
Location: montana
Posts: 620
i also think it is clone of the Singer 15-91. you could probably get a 15-91 manual & do just fine with it. if it is
built as sturdy as the old Singer, it is quite a heavy-duty machine. not industrial though. you will love sewing on it !
built as sturdy as the old Singer, it is quite a heavy-duty machine. not industrial though. you will love sewing on it !
#5
Super Member
Join Date: Jan 2011
Location: Oklahoma
Posts: 1,325
I also think this is a 15-91 clone. And you will love sewing on it. It sews anything! You can sew binding on a quilt with all the thicknesses like its moving through butter. I have the 15-91 and I have already told hubby, something happens to that machine I will be finding me another one. Enjoy.
#6
Super Member
Join Date: Jun 2010
Location: Middle TN
Posts: 1,627
Have you posted this in the vintage machine shop section?
Pretty sure someone there can help. Here's the link
http://www.quiltingboard.com/t-43881-1.htm
Pretty sure someone there can help. Here's the link
http://www.quiltingboard.com/t-43881-1.htm
#7
Member
Join Date: May 2020
Posts: 1
Does anyone have this machine. I've had it for several years but have not been able to get info. on it. It is called Macy's Own, HERALD. That is the only thing I know. If anybody has info. on this machine, let me know. Yr.model, etc.
All orginal
Attachment 217688
Only thing I know-name and that it was made in Japan.
Only thing I know-name and that it was made in Japan.
#8
Senior Member
Join Date: Sep 2013
Location: Saskatchewan
Posts: 838
The Singer 15-91 has a potted motor. The version with an external motor is the 15-90, so a belt for a 15-90 should work.
#9
Jennifer is correct about the differences between an 15-90 and 15-91. The 15 clone machines are of the 15-90 not the 15-91. The 15-91 does not have a belt. I agree that if the belt would fit a 15-90, then it should work. There are a couple of places that tell how to measure a sewing machine belt. Sew-classic has a pdf at http://www.shop.sew-classic.com/medi...%20install.pdf I don't know how long it will be there as she has closed her shop .
There a couple of differences between the Singer 15 and the 15 clones. One difference is that the flat of the needle on the clones goes on the right for the clones, whereas, the 15-90 has the flat on the left. The clones would be threaded from left to right through the eye of the needle. The other difference would be the drop feed for the clones is on the bed of the machine, in front of the pillar.
There is a manual for a White 15 clone at https://res.cloudinary.com/singer-se...e-575-st-x.pdf There may be some differences in the bobbin area, but the rest of it should be helpful.
Janey - Neat people never make the exciting discoveries I do.
Not affiliated with off-site link(s)
There a couple of differences between the Singer 15 and the 15 clones. One difference is that the flat of the needle on the clones goes on the right for the clones, whereas, the 15-90 has the flat on the left. The clones would be threaded from left to right through the eye of the needle. The other difference would be the drop feed for the clones is on the bed of the machine, in front of the pillar.
There is a manual for a White 15 clone at https://res.cloudinary.com/singer-se...e-575-st-x.pdf There may be some differences in the bobbin area, but the rest of it should be helpful.
Janey - Neat people never make the exciting discoveries I do.
Not affiliated with off-site link(s)
