Necchi BU Nova
#1
Member
Thread Starter
Join Date: Feb 2019
Posts: 3
Necchi BU Nova

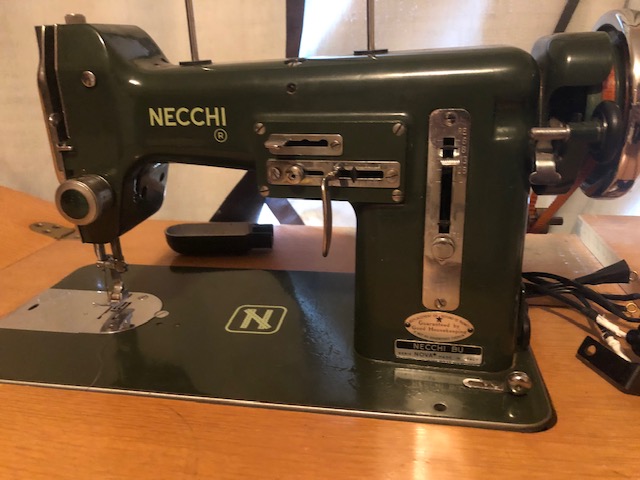

I purchased a Necchi BU Nova that I thought I could fix up and use. It seemed mostly in good condition, just needing a belt replaced, and the lead cord replaced, but as I got into it, it seems more of the wiring should be replaced and I am nervous about doing it myself. I am wondering if there is anyone in the Wichita, Kansas or St. Louis, Missouri area (moving to this area in about 6 months) that would consider helping me? Or any businesses that are recommended?
#2
Junior Member
Join Date: Jul 2018
Location: SW Pennsyltuckey
Posts: 111
The older (late 40s to mid 50s) Necchi machines seem to have a wire insulation aging issue. Oddly, Necchi didn't manufacture the motor or the wire used, it was contracted out. Is your machine a cabinet model or a portable? - and, what part of the wiring are you questioning. (The motor leads, pedal leads, wire to light... etc). It would be helpful to know.
#4
Member
Thread Starter
Join Date: Feb 2019
Posts: 3
The older (late 40s to mid 50s) Necchi machines seem to have a wire insulation aging issue. Oddly, Necchi didn't manufacture the motor or the wire used, it was contracted out. Is your machine a cabinet model or a portable? - and, what part of the wiring are you questioning. (The motor leads, pedal leads, wire to light... etc). It would be helpful to know.
#6
Junior Member
Join Date: Jul 2018
Location: SW Pennsyltuckey
Posts: 111
Hey Red, you ready for this? Okay, here we go... first off, the end of the Necchi power cable will only go on one way. It has these little curved indentations to make sure that it goes on one way. Thoughtful huh? =) So no need to worry about that! Yeah!
[ATTACH=CONFIG]609515[/ATTACH]
^ Here's a picture with an inset. The inset shows the end of the power cord. The rest of the photo is for your visual reference. This is how my Necchi has it's wiring block mounted to the machine. If yours is mounted differently... you'll need to take that into consideration. I can only show you what I have - and what I have works.
[ATTACH=CONFIG]609516[/ATTACH]
^ this picture shows the back of my wiring block. If you look really close there are two numbers stamped into the plastic. There's a number one, and a number three. As I describe the way mine is wired I identify the 'number one' post as being to the left of the stamped number one, and the number three post to the right of the stamped number three. (I am going on the assumption that the post in the middle is number two - even though there isn't a number indicating such.)
[ATTACH=CONFIG]609517[/ATTACH]
Now, with all of those considerations in place (perspective and mounting angle) here is a drawing showing which posts the wires on my Necchi are attached. Do note that is not important which of the two light leads go to post one or to post two - just that one goes to post one and one goes to post two! If the wires that are still attached to your wiring block are identical in their position in comparison to the ones on my machine... then this should be the answer for where your light leads go. If the leads on your machine are not on the same posts as the drawing, this is not your answer.
*I've never seen more than two wires per post - but I haven't seen everything. =)
[ATTACH=CONFIG]609515[/ATTACH]
^ Here's a picture with an inset. The inset shows the end of the power cord. The rest of the photo is for your visual reference. This is how my Necchi has it's wiring block mounted to the machine. If yours is mounted differently... you'll need to take that into consideration. I can only show you what I have - and what I have works.
[ATTACH=CONFIG]609516[/ATTACH]
^ this picture shows the back of my wiring block. If you look really close there are two numbers stamped into the plastic. There's a number one, and a number three. As I describe the way mine is wired I identify the 'number one' post as being to the left of the stamped number one, and the number three post to the right of the stamped number three. (I am going on the assumption that the post in the middle is number two - even though there isn't a number indicating such.)
[ATTACH=CONFIG]609517[/ATTACH]
Now, with all of those considerations in place (perspective and mounting angle) here is a drawing showing which posts the wires on my Necchi are attached. Do note that is not important which of the two light leads go to post one or to post two - just that one goes to post one and one goes to post two! If the wires that are still attached to your wiring block are identical in their position in comparison to the ones on my machine... then this should be the answer for where your light leads go. If the leads on your machine are not on the same posts as the drawing, this is not your answer.
*I've never seen more than two wires per post - but I haven't seen everything. =)
Last edited by Steelsewing; 03-01-2019 at 07:47 PM.
#7
...
[ATTACH=CONFIG]609516[/ATTACH]
^ this picture shows the back of my wiring block. If you look really close there are two numbers stamped into the plastic. There's a number one, and a number three. As I describe the way mine is wired I identify the 'number one' post as being to the left of the stamped number one, and the number three post to the right of the stamped number three. (I am going on the assumption that the post in the middle is number two - even though there isn't a number indicating such.)
[ATTACH=CONFIG]609517[/ATTACH]
Now, with all of those considerations in place (perspective and mounting angle) here is a drawing showing which posts the wires on my Necchi are attached. Do note that is not important which of the two light leads go to post one or to post two - just that one goes to post one and one goes to post two! If the wires that are still attached to your wiring block are identical in their position in comparison to the ones on my machine... then this should be the answer for where your light leads go. If the leads on your machine are not on the same posts as the drawing, this is not your answer.
*I've never seen more than two wires per post - but I haven't seen everything. =)
[ATTACH=CONFIG]609516[/ATTACH]
^ this picture shows the back of my wiring block. If you look really close there are two numbers stamped into the plastic. There's a number one, and a number three. As I describe the way mine is wired I identify the 'number one' post as being to the left of the stamped number one, and the number three post to the right of the stamped number three. (I am going on the assumption that the post in the middle is number two - even though there isn't a number indicating such.)
[ATTACH=CONFIG]609517[/ATTACH]
Now, with all of those considerations in place (perspective and mounting angle) here is a drawing showing which posts the wires on my Necchi are attached. Do note that is not important which of the two light leads go to post one or to post two - just that one goes to post one and one goes to post two! If the wires that are still attached to your wiring block are identical in their position in comparison to the ones on my machine... then this should be the answer for where your light leads go. If the leads on your machine are not on the same posts as the drawing, this is not your answer.
*I've never seen more than two wires per post - but I haven't seen everything. =)
Janey - Neat people never make the exciting discoveries I do.
